PROJECT RECORD
Comprehensive 3D metric documentation and digital twin creation of the Chiesa di Sant'Antonio dei Cappuccini in Martina Franca. The project captures the entire monumental complex, from large-scale exterior facades and roof structures down to complex interior geometries, including vaulted ceilings, side chapels, and highly detailed handcrafted wooden altars.
A rigorous multi-sensor data fusion approach combining aerial and terrestrial mapping systems georeferenced under the RDN2008-UTM33N system:

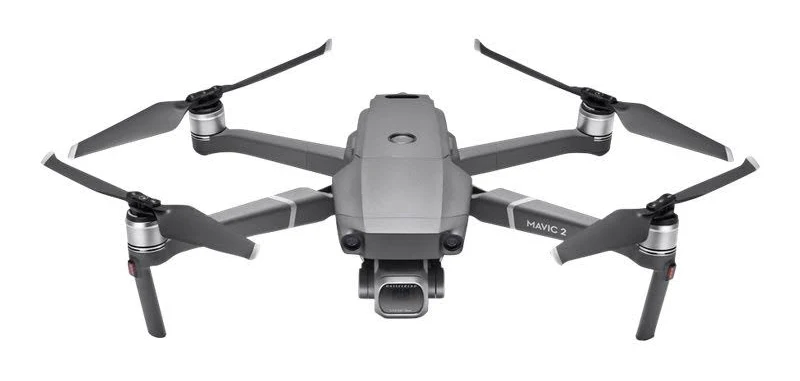

Exterior surfaces and roofs captured via a DJI Mavic 2 Pro drone equipped with a 20 MP Hasselblad camera, processing 519 high-resolution images through SfM/MVS algorithms.

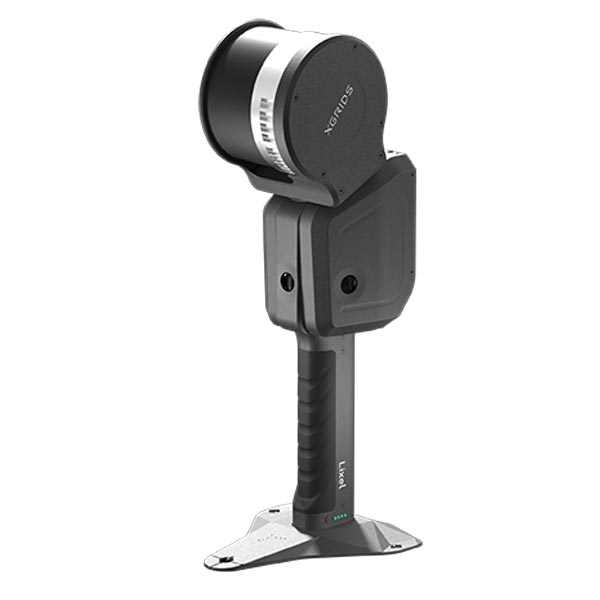

Intricate interior heritage spaces documented using an XGRIDS LIXEL L2 handheld Mobile Laser Scanner driven by SLAM technology, capturing over 640,000 points/second.
Absolute spatial georeferencing secured through an 11-point Ground Control Point (GCP) network, surveyed using a Leica GNSS Viva 12 receiver in high-precision PPK mode.
Dipartimento di Ingegneria Civile, Ambientale, del Territorio, Edile e di Chimica, Polytechnic University of Bari.
Interests: DTM; surveying; photogrammetry; geomatics; environment; geographic information system; remote sensing; spatial analysis; geography; navigation
Email
Dipartimento di Ingegneria Civile, Ambientale, del Territorio, Edile e di Chimica, Polytechnic University of Bari.
Interests: 3D surveying; photogrammetry; terrestrial laser scanner; remote sensing; geographic information system; UAV; cultural heritage; heritage; building information modeling
Email
A.E.S.E.I. SPIN OFF, Polytechnic University of Bari.
Interests: 3D surveying; Structural Engineering, Concrete & Steel Structures, Bridge Information Modeling (BrIM). Building Information Modeling (BIM), Digital Twin, Structural Health Monitoring.
